Geometry & measuresCommon
Plans and elevations:Drawing the solid

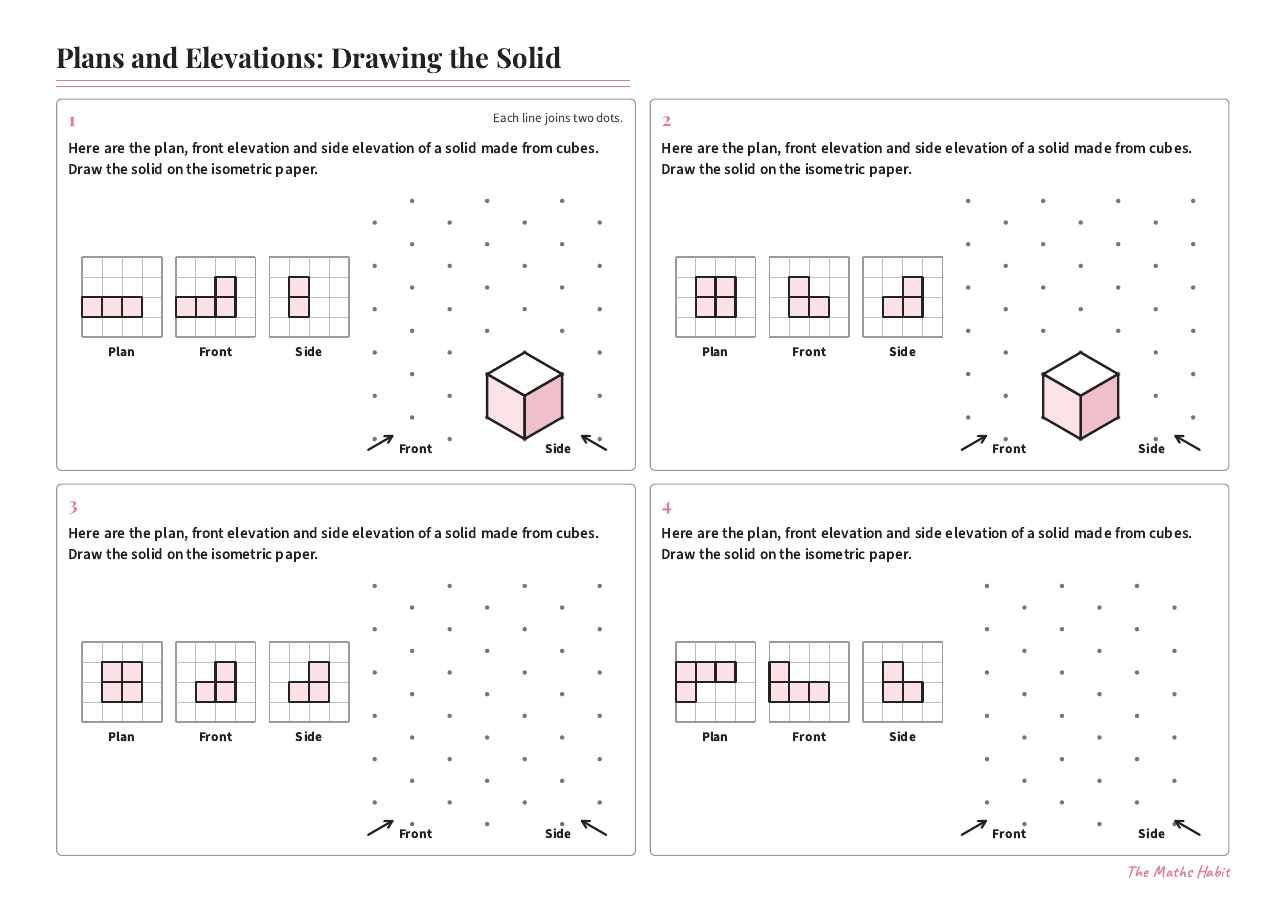

The plan, front and side views are given and the solid is drawn on 1 cm isometric paper. The first cube is drawn at first. Four big boxes to a page.
A free GCSE Foundation and Higher geometry and measures lesson on plans and elevations: drawing the solid, spec code G13. It has a lesson deck to teach from with a visualiser, a worksheet with answers, a puzzle, an exit ticket, end of unit tests and a method video.
Common
Plans and elevations:Drawing the solid

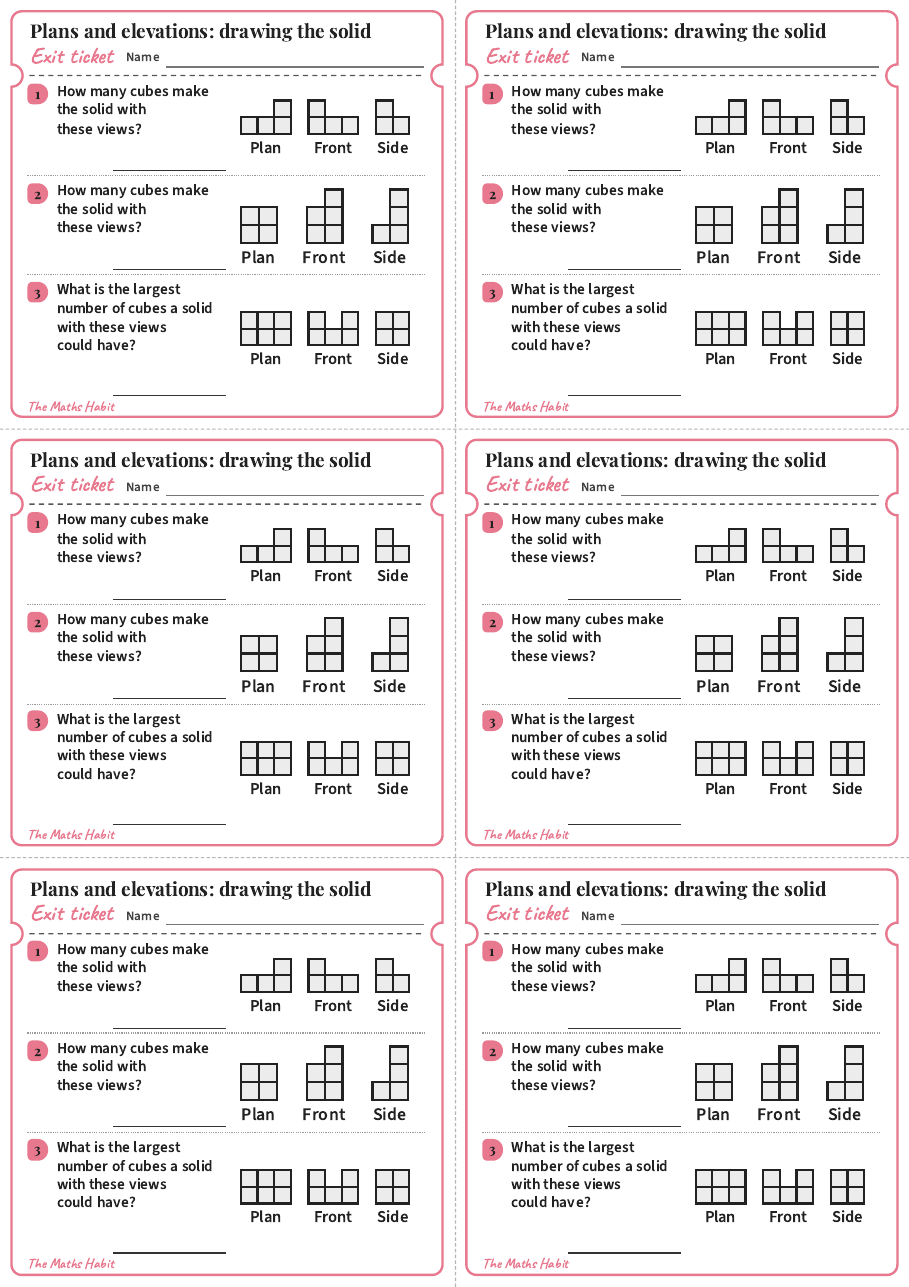

Exit ticket
